CP-UDA-AC02
Home
Products
CP-UDA-AC02

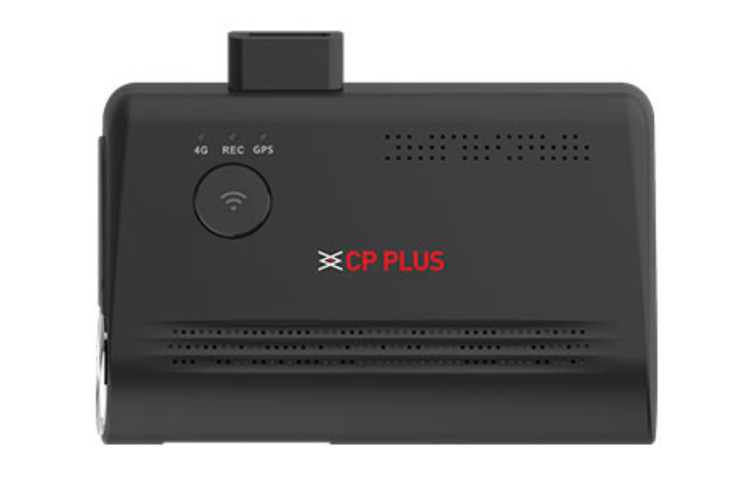

All-in-one Dash Camera
Add To Cart
Category:
Accessories
Sub Category:
Dash Camera
SKU:
10000
Share:
Description
Additional Information
Ratings
Supports 3 external CVI/AHD cameras input
Max. 1080P resolution with 128.6° FOV
Built-in GPS, 3G/4G and Wi-Fi modules
Built-in MiC and speaker support two-way audio
Supports dual-SD card storage and recording overwrite, up to 256GB for each
Supports 3 channels I/O alarm input and 1 key Bluetooth alarm
Built-in G-sensor supports Rollover and Collision status detections
Supports ADAS with built-in camera
Supports DSM, face recognition and abandoned object detection (require external camera)
Image Sensor
1/2.8 inch CMOS (0.9071 centimeters)
Max. Resolution
1920 (H) × 1080 (V)
Electronic Shutter Speed
NTSC: 1/30 s–1/10,000 s; PAL: 1/25 s–1/10,000 s
Lens
2.6mm
Aperture
F1.7
Field of View
H: 128.6° V: 69.4° D: 153.4°
Iris Control
Fixed
Video Streaming
Main stream: CH1: 1080P/720P/960H/D1/CIF; CH2–CH4: 720P/960H/D1/CIF, Sub-stream: CH1 – CH4: D1/CIF
Video Compression
H.264/H.265
Frame Rate
25/30fps
Back Light Compensation
BLC/HLC/WDR
Gain Control
Auto
Noise Reduction
2D/3D NR
Built-in Microphone
Support
Built-in Speaker
1 channel speaker output
Alarm Input
3 channels I/O alarm input
Bluetooth Alarm
1 channel Bluetooth alarm
Indicator Light
REC, 4G, GPS and Wi-Fi
G-Sensor
Supports rollover and collision status detection
3G/4G
Supports EVDO, WCDMA, TD-LTE, FDD-LTE
GPS
Built-in GPS module can realize the function of display and video recording of GPS information
Face Recognition
Face capture, face comparison
Wi-Fi
Built-in Wi-Fi module supports Wi-Fi and AP
DSM
Supports driver behaviour analysis such as fatigue, distraction, smoking, calling, unfasten seat belt and leaving the seat
ADAS
Supports front car start reminder, forward collision, lane departure and vehicle distance too close warnings
Abandoned Object Detection
Supports abandoned object detection to prevent passengers from losing their belongings
Interface Ports
1 RS-232, 1 micro USB 2.0
Storage
Dual-SD card, up to 256 GB for each
Power Input
9 V–16 V DC
Power Consumption
≤ 12 W
Operating Humidity
< 90% (RH, non-condensing)
Weatherproof Standard
IP52
Casing
Plastic
Operating Temperature
–30°C to +60°C (–22°F to +140°F)
Dimensions
125.4 mm × 84.6 mm × 34.2 mm
Net Weight
317.7 g
