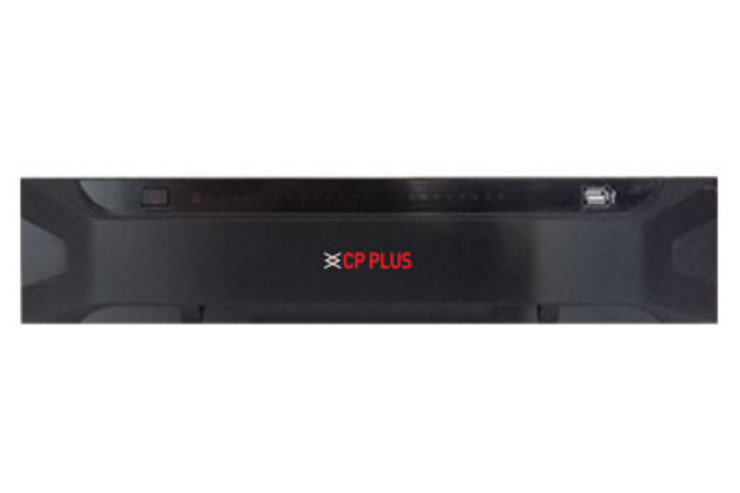

CP-UD-0209L-4K - Supreme Security System

Ultra-HD Network Video Decoder

Category: Network Video Recorder (NVR)

Sub Category: Video Decoder

SKU: 32115

Instastream/H.265/H.264/MJPEG/MPEG4/MPEG2 video decoding
Ultra-high decoding ability, up to 12MP
2ch HDMI and 2ch DVI-I input, 9ch HDMI output
Support 1/4/9/16 display split
Support audio, alarm, bi-directional talk, RS485
Splicing screens control for zoom/merge/roam/overlay

Processor	Embedded processor
Operating System	Embedded LINUX
Video Output	9ch HDMI
Video Resolution	3840×2160/2560×1600/1920×1080/1280×1024/1280×720/1024×768, only 6 ports support 3840×2160, the remaining 3 ports support 2560×1600
Interface Ports	3 RS232(1 DB9, 2 RJ45); 1 RS485
Decoding Capability	9CH@12MP/12CH@4K/48CH@1080P/108CH@720P/144CH@D1
Video Compression	MPEG2/MPEG4/H.264/H.265/H.265+/MJPEG
Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080P/720P/960H/D1/HD1/2CIF/CIF/QCIF
Alarm Input	4ch
Audio Output	9ch HDMI
Audio Compression	PCM/G711/AAC
Alarm Output	4ch relay out (30VDC 1A, 125VAC, 0.5A)
Ethernet	2 RJ45 network port (10M/100M/1000M)
Working Temperature	-10 °C to +55 °C (14 °F to 131 °F)
Working Humidity	10~90%RH / 86~106kpa
Power Supply	AC100-240V, 50Hz-60Hz
Power Consumption	≤70W
Dimension	440×408×70mm (W x D x H)
Weight	4.83kg
