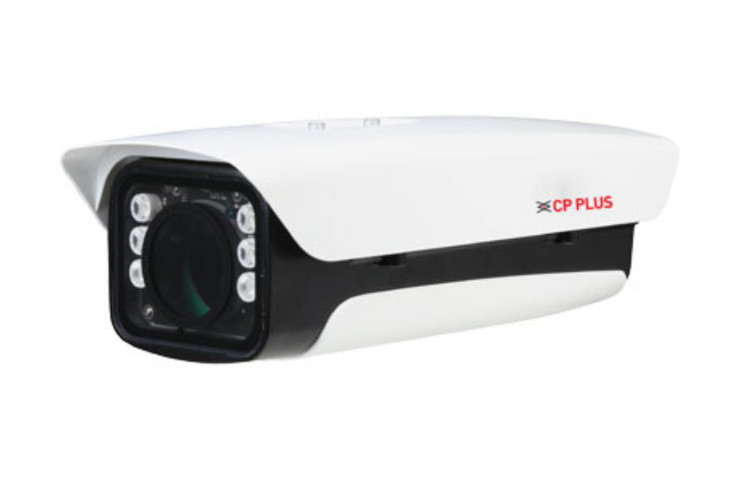

CP-UA-H14L100B-V

14” Vandal-Proof IR Housing

Category: Accessories

Sub Category: Housing

SKU: 10000

Material	Aluminum (case) & PC (others)
Dimension (WHD)	404mm x164mm x132mm
IR	0~100m
Operating Temperature	Set: -40ºC ~ 60ºC Heater: ON: <+5ºC(+41°F)/ OFF: +5ºC(+41°F) Cooler: ON: 37±1ºC(98.6±33.8°F)/ OFF: 20±1ºC(68±33.8°F)
Weatherproof Standard	IP67, IK10
Power Supply	AC24V/5A
Net Weight(g)	3.1Kg
Power Consumption	55W (Without camera)
Humidity	≤90% RH
Weight	3.1Kg
