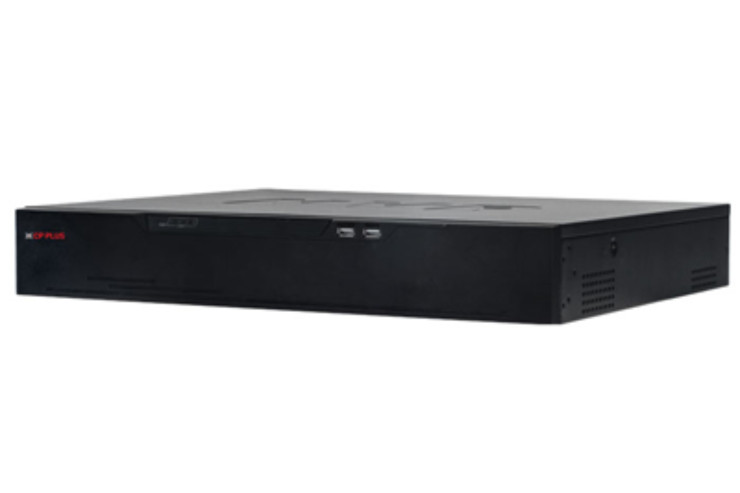

32 Ch. 4K AI Network Video Recorder
- Up to 32 channel IP camera input
- Instastream/H.265/H.264+/H.264 codec decoding
- Max 320 Mbps bandwidth
- Up to 16 face databases with 10,000 face images in total
- Up to 32ch picture stream face recognition
- Up to 20 Face pictures/sec processing
- Simultaneous HDMI and VGA up to 4K output
- Support 4 SATA Ports, up to 12TB Each, 3 USB Ports, 1 eSATA Port, 16 PoE Ports
- Support RAID 5/6/10
- Support Multi-brand network cameras
- ONVIF Version 2.4 conformance
- Mobile Software: Android, iOS
| Operating System | Embedded LINUX |
|---|---|
| Processor | Dual-core embedded processor |
| Video Compression | Instastream/ H.265/H.264+/H.264 |
| User Interface | GUI |
| IP Camera Input | 32 channel |
| Two-way Talk | Yes |
| Video Output | 1 HDMI, 1 VGA |
| Resolution | HDMI: 3840x2160, 1920×1080,1440×900, 1280×1024, VGA: 1920×1080, 1440×900, 1280×1024 |
| Video Display Split | 1/4/8/9/16/32/36 |
| Video Loss | Support |
| Motion Detection | Support |
| Video Recording | 320Mbps |
| Playback | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Performance | Max 20 face pictures /sec processing 32ch picture stream face recognition |
| Record Interval | Post-record: 30 ~ 60 sec |
| Stranger Mode | Detect strangers' faces (not in device's face database) Similarity threshold can be set manually |
| Recording Mode | Manual, Schedule (Regular, Continuous, Motion Detection, Video Loss, Camera Tamper, Alarm in, IVS |
| Bit Rate | 128Kbps ~ 8192Kbps Per Channel |
| Search Mode | Time /Date, Alarm, Picture grid, Event |
| Database Management | Up to 16 face databases with 10,000 face images in total |
| Database Application | Every data can be applied to any channel |
| Trigger Events Face Recognition | Buzzer, Alarm push, Alarm prompt, Email, Alarm Out, Compare the result simultaneously, etc. |
| AI Search | Search for image by image Search image by properties |
| Face | Face comparison results (registrant (name and ID), stranger, channel, similarity) |
| Human Body | Recently captured image display |
| Vehicle | Recently captured image display |
| Interface Ports | 1 HDMI, 1 VGA, 3 ports (USB 2.0 x2, USB3.0 x1), 1 RS485, 1 RS232 |
| Trigger Events | Recording, Buzzer, Push message, Pop up message. |
| Non-motor Vehicle | Recently captured image display |
| Audio Input | 1 Channel |
| Audio Output | 1 Channel |
| Alarm Input | 2 Channel |
| Alarm Output | 1 Channel |
| RAID | RAID 5, RAID 6, RAID 10 |
| Hard Disk | 4 SATA Ports, up to 12TB for each HDD, 1 eSATA Port |
| User Account | 10 users |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, 3G/4G, PPPoE, ONVIF, SDK, CGI |
| Camera Blank | Supports |
| Backup Mode | USB Device |
| Ethernet | 1 RJ-45 port (10/100/1000Mbps) |
| PoE | 16ch 100Mbps, IEEE 802.3af |
| Smart Phone | iPhone, iPad, Android Phone |
| Power Supply | AC100~240V |
| Power Consumption | <15W (without HDD), PoE Max Power: 160W |
| Working Temperature | -10 °C ~ 50 °C (14 °F ~ 122 °F) |
| Working Humidity | Less than 90% RH |
| Dimension | 440 x 368.3 x 70mm |
| Net Weight | 4.2kg (without HDD) |
