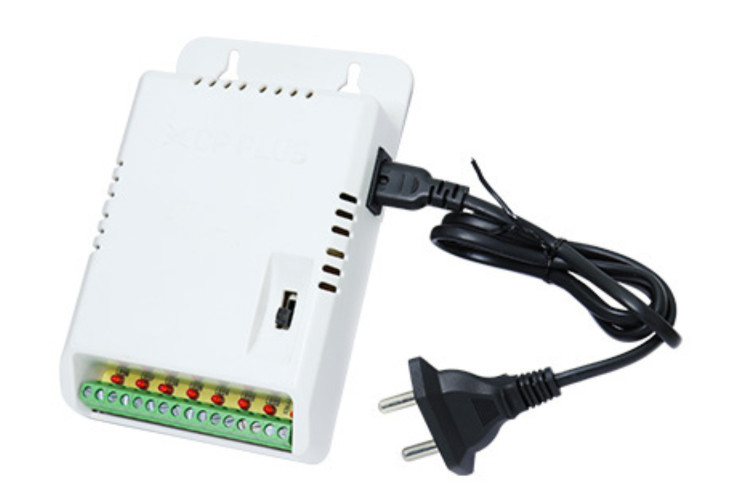

CP-LPS-PD08-12D

8 Ch. Eco Power Supply

Category: Accessories

Sub Category: Power Supply

SKU: 10000

Input voltage	150VAC-240VAC
Output voltage	12V DC
Current Range	0-1A Each Channel
Rated Power	48W
Ripple & Noise (max.)	<200mV
Voltage Adj. Range	12VDC-15VDC
Line Regulation	<3% at 150VAC-240VAC
Voltage Tolerance	10%
Setup Rise time	30mS max @ rated load, output voltage from 10% to 90%
Hold Up Time (Typ.)	30ms max @ full load & 230Vac input turn off
Load Regulation	<10% at 150VAC-240VAC
Temperature coefficient	Max 75 degree
Frequency Range	50Hz-60Hz. Normal
Efficiency (Typ.)	70%
AC Current (Typ.)	1.2A Max @ max 100-240Vac input & full load
Inrush Current (Typ.)	50A max @ 240 Vac input & full load
Leakage Current	0.008 A Max
Over Load	Supported
Isolation Resistance	50MΩ min at primary to secondary add 500Vdc test voltage
Working Humidity	5% to 95%
Vibration	n/a
Withstand Voltage	Input (100 - 240)V AC/ Output (12 -15)V DC
Dimension	154.7mm x 97.38mm x 32.90mm
Store temperature	-40°C to +70°C
Working temperature	-10°C to +45°C
Body Type	Plastics ABS
Weight	233.1g
