Internal circuit with AGC gain control and power amplification
circuit, maximally eliminate the noise, to guarantee the output
intensity.
The

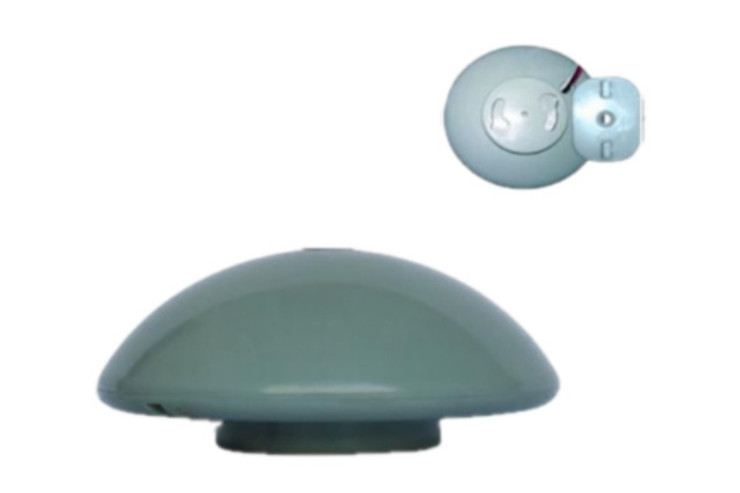

microphone is on the surface and restore sound more closely; hang tenon
type design of sliding block structure, easy to absorb the ceiling or
side wall installation.
Loud sound and pure timbre within 5-30m² monitoring range.
Audio pickup, designed for audio monitoring, the advantages of big monitoring range and high sensitivity.
Built-in
lightning protection, power supply polarity reverse connect
protection, ESD electrostatic protection and power protection module.
Long
audio signal transmission technology, Long audio signal transmission
technology, use the RVVP3 x 0.5mm² shield cable, it is distortion less
within 3km.
Integrated professional front audio amplifier circuit, direct drive active speakers, DVR, earphones, etc.
Applicable to the banks, factory, schools, offices and any places need to audio monitoring.
Audio Monitor Range
5-30m²
Material
Advanced resin PVC
Audio Transmission Distance
3000m
Frequency Response
20Hz~20kHz
Sensitivity
-50dB
SNR
60dB(1m40dB) 50dB(10m40dB) 1KHz at 1Pa
Directional Property
Omnidirectional
Dynamic Range
80dB (1KHz at Max dB SPL)
Max Sound Pressure
120dB SPL (1KHz, THD 1%)
Output Impedance
600 ~ 1000Ω non-equilibrium
Output Signal Amplitude
2.5Vpp/-25dB
Microphone
Electret condenser microphone
Protective Circuit
Lightning protection, power supply polarity reverse connect protection, ESD protection
Signal Processing Circuit
AGC, ALC
Connection Way
3 leading wires (red lead is power+ white lead is audio signal + black is power & audio signal)
Transmission Cable
RVVP3×0.5mm2 shield cable
Power Supply
DC10V~18V (recommend to use 12V, more than 500 meters recommended 15 v)
