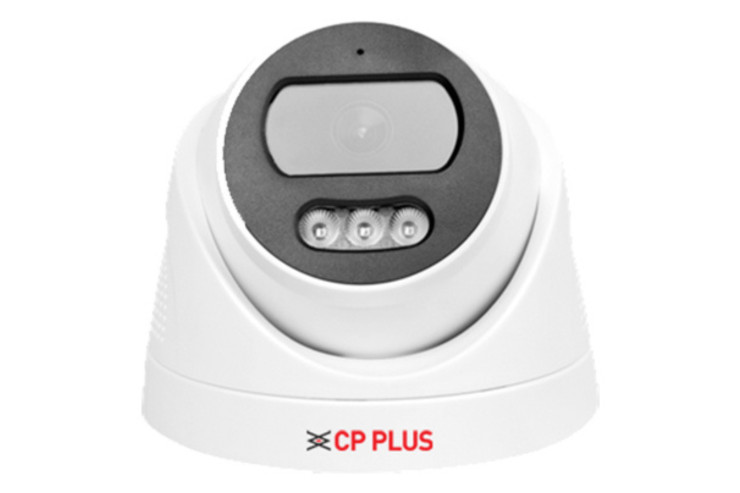

CP-ENC-D41PL3C

4MP IR Network Dome Camera - 30Mtr.

Category: Network Camera

Sub Category: 4 MP

SKU: 32115

1/3” 4MP PS CMOS Image Sensor (0.84667cm)
2560(H) x 1440(V)@25fps
H.265/H.264/JPEG/AVI/MJPEG
DWDR, BLC, HLC, 3D-NR, White Balance
2.8mm fixed lens (3.6mm optional)
IR Range of 30 Mtr. , PoE
Mobile Software: sMOB, gCMOB
CMS Software: SVMS Pro

Image Sensor	1/3" 4MP PS CMOS Image Sensor (0.84667cm)
Effective Pixels	2560(H) x 1440(V)
Minimum Illumination	Color: 0.04 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Speed	Auto: 1/3-1/100000Sec
Lens	2.8mm fixed lens (3.6mm optional)
Max. Aperture	F2.0
S/N Ratio	60dB
Back Light Compensation	BLC/ DWDR
Angle of View	2.8 mm: Horizontal FOV 100.5°, vertical FOV 55.9°, diagonal FOV116.9°, 3.6 mm: Horizontal FOV 78°, vertical FOV 41.8°, diagonal FOV 95.4°
Video Compression	H.265/H.264/JPEG/AVI/MJPEG
Resolution	4MP(2560 x 1440)
Frame Rate	Main Stream 1: 2560x1440@25fps, Main Stream 2: 1920x1080@25fps, Main Stream 3: 1280x720@25fps, Sub Stream 1: 720x480@25fps, Sub Stream 2: 640x360@25fps, Sub Stream 3:352x288@25fps
Motion Detection	Support
Privacy Mask	3 Rectangular Zone
Reset Button	Optional
Audio Compression	G711A/U
TV System	PAL/NTSC
Image Config	Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, Anti Flicker, HLC, Distortion
Protocol	TCP/IP,IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP ,PPPoE, NTP, SMTP, UDP,Qos,802.1x,PPPoE,ONVIF 19.12(Profile S/T)
IVS	Intrusion Detetion, Motion detection based on Human detection
Recording Mode	NVR/CMS/Web
Ethernet	RJ-45 (10/100Base-T)
IR Distance	IR Range of 30 Mtr.
IR Cut Filter	Support
Day/Night	Color/ B&W (IR-CUT)
Smart Phone	iPhone, iPad, Android Phone
Browser	IE8-11, Google Chrome, Firefox , Mac Safari
IR Control	Auto
IR Power On	Smart, Manual & Timed mode
PoE	Internal, Support IEEE 802.3af
No of IR LEDs	42µ x 2PCS
Focus Control	Fixed
Audio	Built in Mic
Operating Temperature	-20°C ~ +60°C RH95% Max
Storage Temperature	-20°C ~ +60°C RH95% Max
Power Source	DC12V±10%, 700mA
Casing	Plastic
Dimension	φ107.34x90.7(H)mm
Weight	239gm
