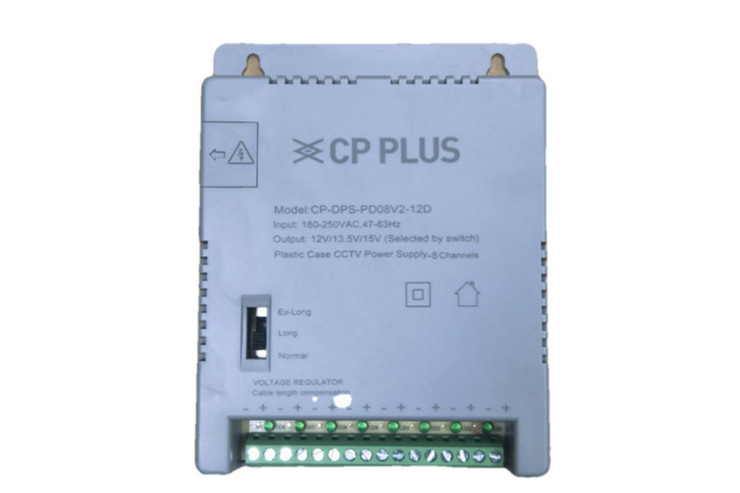

CP-DPS-PD08V2-12D

8 Channel Power Supply

Category: Accessories

Sub Category: Power Supply

SKU: 10000

Input voltage	180~264V AC
Output voltage	12V DC
Current Range	0~5A
Rated Power	60W
Ripple & Noise (max.)	120mVp-p
Voltage Adj. Range	11.4~12.6V
Line Regulation	±1.0%
Voltage Tolerance	n/a
Setup Rise time	2500ms, 15ms at full load
Hold Up Time (Typ.)	20ms at full load
Load Regulation	±5.0%
Temperature coefficient	±0.03%/°C (0~50°C)
Frequency Range	47~63HZ
Efficiency (Typ.)	86%
AC Current (Typ.)	1A/220VAC
Inrush Current (Typ.)	Cold Start: 40A/220V AC
Leakage Current	<2mA / 240VAC
Over Load	110~200% rated output power, Protection type: Shut down O/P, recovers automatically
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500V DC / 25°C/ 70% RH
Working Humidity	20 ~ 90% RH Non-condensing
Vibration	10 ~ 500Hz, 3G 10min./1 cycle, 60min. each along X, Y, Z
Dimension	144(L) x 109.5(W) x 33mm(H)
Store temperature	-20 ~ +85°C
Working temperature	-20 ~ +45°C
Withstand Voltage	I/P-O/P: 1.5KVAC I/ P-FG: 1.5KVAC O/P-FG: 0.5KVAC
